1. overview

optical line protection system (olp) uses vacant optical fiber from different route to build a backup path. by real-time monitoring the power status in working fiber, it can automatically switch from working fiber to backup fiber when the power value of working fiber lower than  a user defined threshold . olp will provide you a more reliable, flexible and high secure optical transmission network .it is widely used for protecting backbone and important business line.

olp shown as the figure below

u      features

reduce interrupt time of communication and improve maintenance efficiency with quickly recovering communication

remarkably reduce damage to network caused by fiber failure

increase network reliability and improve service quality

harmless switch between working path and secondary path and convenient for line overhaul and  cutover

real-time monitoring power level of fiber

support remote control, easy management and maintenance

transparent transmission

2.olp system

2.1working theory

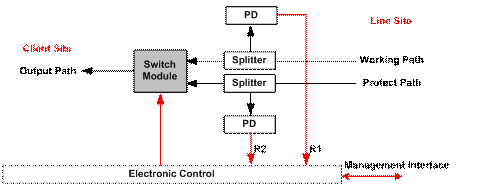

1:1

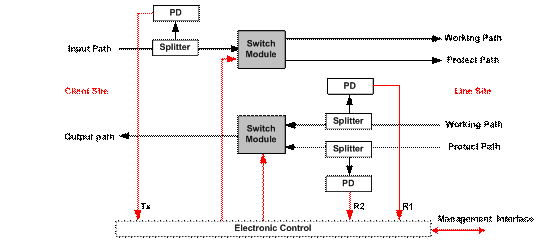

1+1

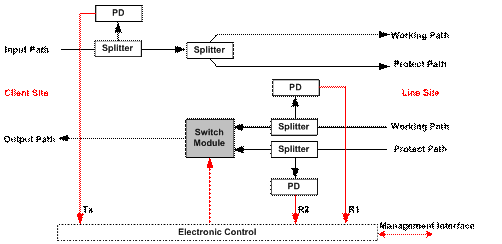

1-1



2.2 specifications

	1:1	1+1	1-1
work working wavelength           nm	131050nm and 155050nm
monitoring power range      dbm	23-50
monitoring power accuracy    db	0.25
monitoring power resolution  db	0.01
return loss                  db	55
pdl                          db	0.05
wdl                          db	0.1
insertion loss               db	tx<1.2rx<1.2	tx<4rx<1.2	<1.2
switching time               ms	<35	<15	<15
durability(life)          times	>107
operating temperature	-10+60c
storage temperature	-20+75c
power supply                  v	dc(36-72)v and ac(85-264)v/50~60hzdual power supply
power-down condition	hold in working path or switch to backup path
optical connectors	sc/pc
size	standard 19' 1u/4u











































2.3 ordering information

 2.4 equipment outlook

1u panel

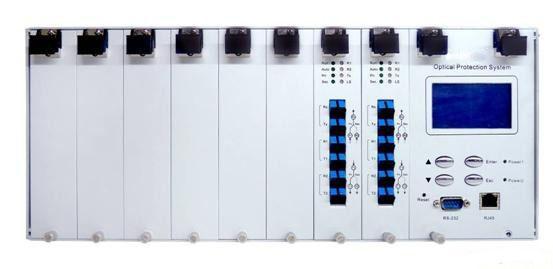

4u panel

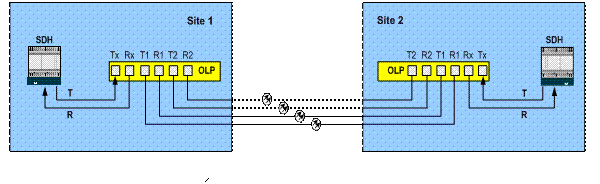

2.5 application example
